2 ID X 72 IN OA YELLOW 500# GORILLA HOSEMULTI-PURPOSE HOSE ASSEMBLY - W/ -32 S/S JIC FEMAL ....Item# 1034-32-32FJ-32FJ-SS-72Specifications -
1 ID X 20 FT YELLOW 500# GORILLA HOSEMULTI-PURPOSE HOSE ASSEMBLY - W/ 1 IN STAINLESS ST ....Item# 1034-16-NN-SS/20Specifications
-
1 ID X 20 FT YELLOW 500# GORILLA HOSEMULTI-PURPOSE HOSE ASSEMBLY - W/ 1 IN STAINLESS ST ....Item# 1034-16-16M-16M-SS/20Specifications
-
1/2 ID X 2 FT OAL YELLOW 500# GORILLAMULTI-PURPOSE HOSE ASSEMBLY - W/ S/S 1/2 IN NPT SW ....Item# 1034-08-8MS8MS-SS/2Specifications
-
2 ID X 100 FT YELLOW 500# GORILLA HOSEMULTI-PURPOSE HOSE ASSEMBLY - W/ 2 IN STEEL NPT RI ....Item# 1034-32-HALPS-HALPS/100Specifications
-
3/8 ID X 50 FT YELLOW 500# GORILLA HOSEMULTI-PURPOSE HOSE ASSEMBLY - W/ 3/8 IN NPT SWIVEL ....Item# 1034-06-6MS-6MS/50Specifications
-
1/2 ID X 50 FT YELLOW 500# GORILLA HOSEMULTI-PURPOSE HOSE ASSEMBLY - W/ S/S 1/2 IN NPT SW ....Item# 1034-08-8MS/12MA-8MS/12MA-SS/50Specifications
-
1/2 ID X 25 FT: YELLOW 500# GORILLA M/PHOSE ASSEMBLY - W/1/2 NPT SWIVEL S/S- BRASS MALES ....Item# 1034-0502-SE-SE/25Specifications
- Create an Account
Other Assemblies

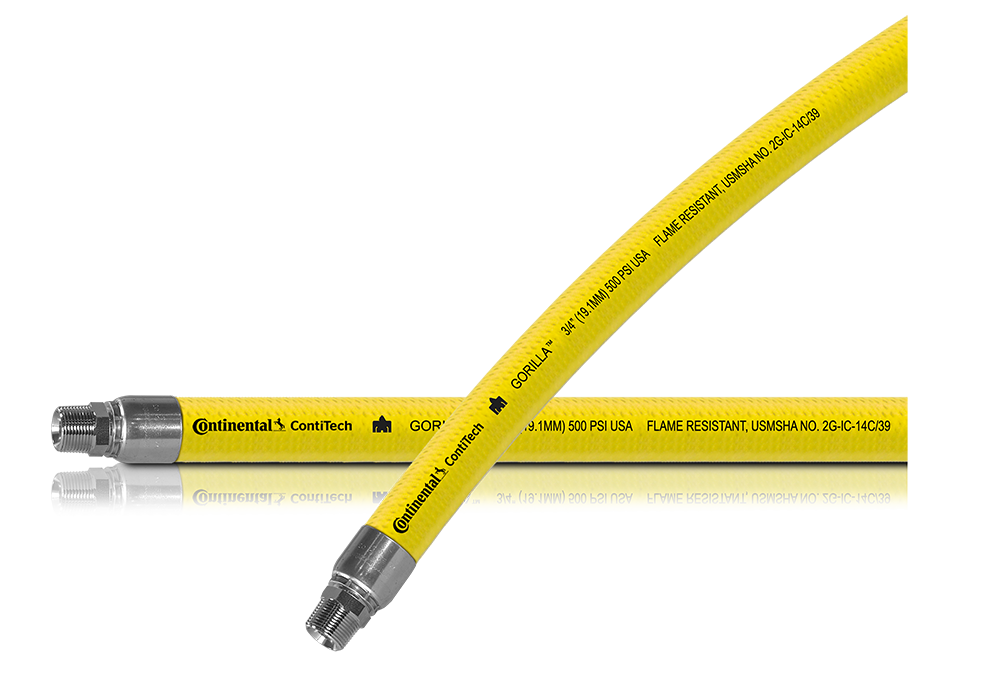

Gorilla 500# Multi-Purpose Hose - Assemblies
Application
A premium-quality, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry, and shipbuilding. All sizes are rated at 500 psi (3.4 MPa) maximum working pressure.
Tube
Nitrile synthetic rubber, RMA Class A (High Oil Resistance)
Cover
Yellow Carbryn™ synthetic rubber, RMA Class A (High Oil Resistance) MSHA approved
Reinforcement
Spiral aramid yarn, 2” is braided synthetic yarn
Temperature Range
-20°F to +210°F
