1/2 ID X 50 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/2 NPT MALES (ASSEMBLY RATED ....Item# 1024-0502-50-8MMSpecifications -
1/2 ID X 25 FT RED 300# G/P AIR HOSEASSEMBLY - W /BRASS 1/2 NPT MALES (ASSEMBLY RATED ....Item# 1024-0502-25-8MMSpecifications
-
1/2 ID X 100 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/2 NPT MALES (ASSEMBLY RATED ....Item# 1024-0502-100-8MMSpecifications
-
3/8 ID X 50 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 3/8 NPT MALES (ASSEMBLY RATED ....Item# 1024-0382-50-6MMSpecifications
-
3/8 ID X 50 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/4 NPT MALES (ASSEMBLY RATED ....Item# 1024-0382-50-4MMSpecifications
-
3/8 ID X 25 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 3/8 NPT MALES (ASSEMBLY RATED ....Item# 1024-0382-25-6MMSpecifications
-
3/8 ID X 25 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/4 NPT MALES (ASSEMBLY RATED ....Item# 1024-0382-25-4MMSpecifications
-
3/8 ID X 100 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 3/8 NPT MALES (ASSEMBLY RATED ....Item# 1024-0382-100-6MMSpecifications
-
3/8 ID X 100 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/4 NPT MALES (ASSEMBLY RATED ....Item# 1024-0382-100-4MMSpecifications
-
1/4 ID X 50 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/4 NPT MALES (ASSEMBLY RATED ....Item# 1024-0252-50-4MMSpecifications
-
1/4 ID X 25 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/4 NPT MALES (ASSEMBLY RATED ....Item# 1024-0252-25-4MMSpecifications
-
1/4 ID X 100 FT RED 300# G/P AIR HOSEASSEMBLY - W/ BRASS 1/4 NPT MALES (ASSEMBLY RATED ....Item# 1024-0252-100-4MMSpecifications
- Create an Account

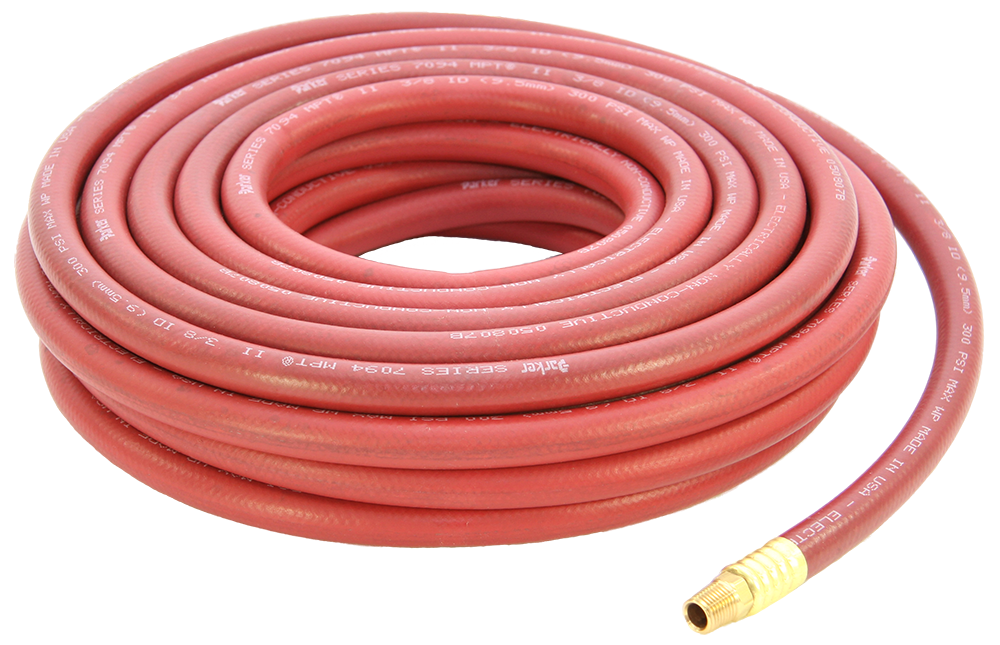

Variflex™ Non-Conductive Multi-Purpose Hose - Assembly
VariFlex™ 300 Non-Conductive Multi-Purpose Hose - Assembly
Application
A good-quality, economical general purpose hose for industrial air service, compressor lines, pneumatic tools, low-pressure spray and many other applications where the need for oil resistance is high. Non-conductive, minimum electrical resistance greater than one (1) megohm per inch of length of hose at 1000 V DC
Tube
Nitrile synthetic rubber, ARPM Class A (high oil resistance)
Cover
Red, Blue or Black Chemivic™ Synthetic Rubber, ARPM Class A (High Oil Resistance)
Reinforcement
Spiral synthetic yarn, 2" is braided
Temperature Range
-20 ºF to 210 ºF (-29 ºC to 99)
